PUSH + PULL

The call and pull-cord button
  • Specific: Primarily designed for
    the care sector
  • Convenient: Call triggering at the push
    of a button or by pulling cord
  • Simple: Easy to connect to external devices
  • Practical: Can be surface-mounted or on an outlet socket
  • Integrated: Member of the WALL family
Ne push pull 1000x1000

Cleverly combined

PUSH + PULL combines the advantages of the two wireless call or pull buttons PUSH + PULL in one device. The alarm can be triggered either by pressing a button or by pulling the handle.

Features and functions

  • Call triggering at the push of a button

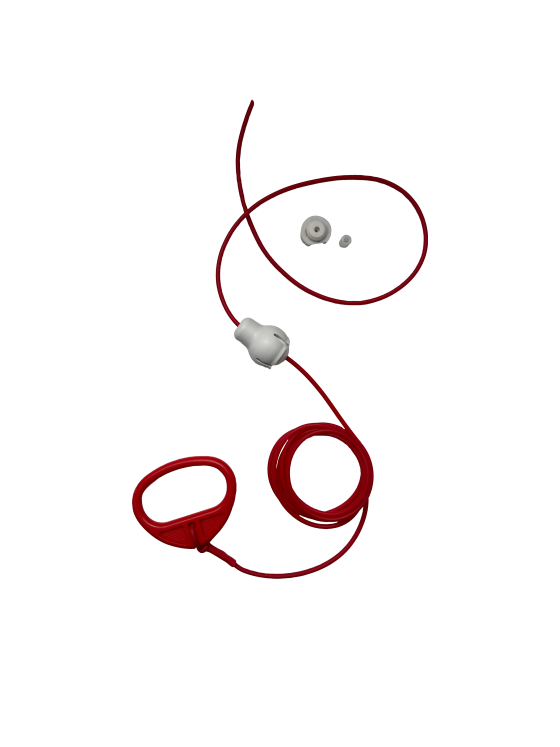

  • Call triggering via integrated cord
  • Screw terminal strip so that external devices can easily be connected
  • With two wired inputs and outputs
  • Surface- or flush-mounted
  • Integrated LED for status display
  • Eight radio transmitter channels can be set
  • Powered through battery or external network component
  • Battery and transmission path monitoring
  • Can be configured via jumper or the WIOR programmer
Ne push pull white 1000x1000

PUSH is a wireless call button which sends an alarm to a connected carephone system at the push of a button or a pull of a cord. In addition to the integrated call button, additional wired call devices can be integrated into the system. External devices can be controlled in specific situations
via two relay outputs.

PUSH + PULL is easy to surface- or flush-mount. It is also easy to attach external devices.

Technical Data

Handy and functional

Specific: Primarily designed for
the care sector

Convenient: Call triggering at the push
of a button or by pulling cord

Simple:  Easy to connect to
external devices

Practical: Can be surface-mounted or
on an outlet socket

Integrated: Member of the WALL family

Ergonomics and usability

Integrated LED for status display

Integrated radio receiver and transmitter

Eight radio transmitter channels can be set

Two additional inputs

Two outputs

Can be configured via jumper or the
WIOR programmer

Security

Powered through battery (2 x AAA) or external network component (10-24 V DC)

Battery status monitoring

Transmission path monitoring
