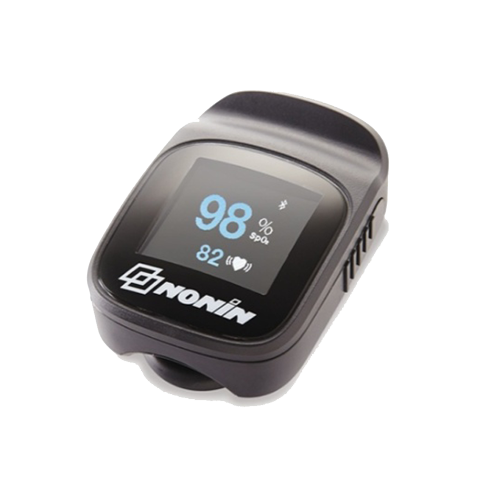

Pulse Oximeter

Smart accuracy and performance

Integrated: Optimally designed for use with NOVO
Clear: Display of oxygen saturation and pulse rate
Reliable: Medically tested

Accuracy

Features algorithms specifically for patients with challenging conditions, unlike other low-cost pulse oximeters
Quickly provides clinically proven accurate SpO2 and pulse rate readings from small to large fingers, good to low perfusion, and dark to light skin tones
Proprietary CorrectCheck™ technology gives feedback when the finger is not placed properly in the device

Connectivity

Easily integrates into most telemedicine hubs via Bluetooth^® Smart wireless technology or USB port

Usability

Easy-to-read large display for patient use
High quality product with proven durability for any environment
Long battery life – it allows for up to 2,200 spot checks on two AAA batteries

Pulse oximetry is a simple procedure for measuring arterial oxygen saturation. The oxygen saturation is termed SpO2 or partial oxygen saturation. This high-performing pulse oximeter provides SpO2 and pulse rate spot-check monitoring. It features Bluetooth^® LE connectivity for simplified pairing and vital information exchange over a secure wireless connection.

Its technology fits well in the NOVO ecosystem.

Simple and secure connection to Bluetooth® Smart Ready devices

Information easily integrates into your telemedicine hubs

Bluetooth® wireless connectivity status indicator on device

Long battery life

Technical specifications

Dimensions: 46mm (1.81”) x 69mm (2.72”) x 31mm (1.22”)
Weight: 63 grams with batteries installed
Warranty: 2 years
Oxygen Saturation Display Range: 0 – 100% SpO2
Pulse Rate Display Range: 18 – 321 beats per minute (BPM)
Oxygen Saturation Declared Accuracy
Range (Arms*):70 – 100% SpO2 ±2 digits
Low Perfusion Oxygen Saturation Declared
Accuracy Range (Arms*): 70 – 100% SpO2 ±2 digits
Pulse Rate Declared Accuracy
Range (Arms*): 20 – 250 BPM ±3 digits
Low Perfusion Pulse Rate Declared Accuracy
Range (Arms*): 40 – 240 BPM ±3 digits
Measurement Wavelengths and Output Power**
- Red: 660 nanometers
- @ 0.8 mW maximum average
- Infrared: 910 nanometers
- @ 1.2 mW maximum average
Bluetooth^® Compliance: Version 4.0 single mode low energy
Brand: NONIN
Model: 3230
